How to choose the right suction cup material for my workpiece surface?

Selecting the correct material is critical for grip and longevity. For high-temperature or oily metal surfaces, we recommend NBR (Nitrile) rubber due to its excellent oil resistance and heat resistance. For electronic components or PCBs, we offer Anti-Static (ESD) Silicone to prevent electrostatic damage. For general smooth surfaces like glass or plastic, standard Silicone or Polyurethane provides the best adhesion and abrasion resistance. Commaelec supports custom material formulations to match your specific environmental needs.

How do your suction cups handle uneven, curved, or porous surfaces?

Our engineering solutions are designed for challenging surfaces. We offer Ball Joint (swivel) mountings (like the ZP2-J series) that compensate for angular misalignment up to 15°-30°, ensuring full sealing contact on uneven workpieces. For porous materials (like cardboard or foam), we recommend using our Oval vacuum suction cups or adjusting the vacuum flow with our vacuum generators to maintain stable pressure and prevent workpiece deformation.

Can your vacuum cups reliably handle ultra-small or delicate electronic components?

Absolutely. Our ZP3 Compact Series is specifically engineered for the electronics industry, featuring diameters ranging from 1.5mm to 16mm. We also provide special Nozzle Vacuum Suction Cups (ZP2) with openings as small as 0.8mm for picking micro-lenses and chips. Combined with our integrated buffer springs, they ensure gentle yet precise handling, preventing scratches or breakage during high-speed pick-and-place operations.

China High Quality Ball Joint Vacuum Suction Cups ZP2-J

I. Kekuwatan inti

Nyedhot vakum minangka solusi inti kanggo "grasping fleksibel" ing otomatisasi industri kanthi papat kaluwihan inti: grasping sing ora ngrusak, adaptasi kanggo benda kerja multi-material / ora duwe aturan baku, perlindungan sing resik lan lingkungan, lan operasi sing fleksibel. Bisa dicocogake kanggo karakteristik industri beda workpieces (tipis / nglukis, tliti / coarse, sanitasi / standar).

II. Ekstraksi aplikasi dening industri

A. Kedokteran lan industri medis

A.1: Persyaratan inti:Bersih lan bebas polusi (cocok FDA/GMP), lembut lan ora ngrusak, lan nyegah kontaminasi silang

A.2 Skenario utama:

1. Kemasan farmasi: botol obat/piring farmasi/tas infus pickup (food grade silicone suction cup, tanpa partikel shedding)

2. Perakitan piranti medis: instrumen bedah/kateter medis/potongan penanganan prostesis (tekanan negatif sing bisa diatur, proteksi deformasi)

3. Laboratorium biologi: piring petri / tabung centrifuge / transfer kertu reagen (tahan kimia, kompatibel steril)

B. Elektronika lan industri semikonduktor

B.1 Persyaratan inti:anti-statis (10⁶-10¹¹Ω), posisi presisi (error ≤0.01mm), tahan gores

B.2 Skenario utama:

1. Chip / Semikonduktor: penanganan wafer, kemasan chip (keramik keropos / cangkir nyedhot silikon anti-statis, tekanan negatif seragam kanggo nyegah pecah)

2. PCB / Komponen: PCB fleksibel, komponen mikro (0402 resistor) dipasang ing permukaan (silikon tipis / gel / cangkir nyedhot mikro kanggo nyegah wrinkling / sobek)

3. Tampilan: panel LCD/OLED, kaca sentuh (bahan transparan dhuwur, ora ana noda lan goresan)

C. Industri otomotif lan onderdil mobil

C.1 Persyaratan inti:suction gedhe (single suction disk ≥500N), adaptasi multi-spesifikasi (logam/plastik/kaca), non-slip

C.2 Skenario utama:

4. Manufaktur bodi: las pelat baja / kusen pintu (karet diameter gedhe / susunan cangkir multi-suction, tekstur anti-slip)

5. Kaca / Interior: Instalasi kaca depan, transfer permukaan kursi kulit (silikon tahan suhu / cangkir nyedhot spons, perlindungan deformasi)

6. Parts: awak silinder mesin / gearbox housing grab (vakum + kunci mekanik, anti-fall)

D. Industri Pangan lan Pengemasan

D.1 Persyaratan inti:Bahan panganan (sertifikasi FDA), gampang diresiki, tahan remuk

D.2 Skenario utama:

1. Penanganan panganan: panganan panggang / daging seger / ngurutake woh-wohan (cangkir nyedhot spons sedheng, ora ana ambune lan gampang dicuci)

2. Otomasi kemasan: bukaan tas kemasan, cetakan karton steril (penghilangan statis / nyedhot multi-titik, cocok kanggo kemasan tipis / keras)

E. Industri Logistik lan Pergudangan

E.1 Persyaratan inti:adaptasi efisien (multiple specifications barang), meksa stabil, anti-tiba

E.2 Skenario utama:

1. Penanganan karton: ngurutake karton e-commerce (susun suction luwes, tekanan vakum)

2. Plate / roll: Papan kayu / transfer gulungan film plastik (strip dawa / cangkir nyedhot annular, adsorpsi seragam kanggo nyegah offset)

F. Energi anyar lan industri khusus

F.1 Energi anyar (baterei lithium/pv):

1. Plat baterei Lithium (cangkir nyedhot keropos anti-statis, anti-debu), kaca fotovoltaik (cangkir nyedhot silikon sedot gedhe, ora ana goresan)

F.2 Printing lan kertas

1. Jupuk kertas / materi sing dicithak (bahan kertas sing nyerep, tekanan negatif sing sithik kanggo nyegah kontaminasi tinta)

III. Ringkesan logika adaptasi inti

Karakteristik benda kerja	Program adaptasi pipet	Skenario industri sing cocog
Tipis / Rapuh / Presisi	Bahan silikon/keramik, tekanan mikro negatif, nozzle suction mikro	Semikonduktor elektronik, farmasi
Barang abot / ukuran gedhe	Bahan karet, cangkir nyedhot diameter gedhe, susunan cangkir multi-nyedhot	Mobil, panel logistik
Kesehatan / Nyegah polusi	Silikon bahan pangan / medis, struktur sing gampang diresiki	Obat, panganan
Lumahing alus / ora teratur	Bahan spons, cangkir nyedhot deformable	Interior mobil, panganan
Persyaratan antistatik	Silikon antistatik, angin ion dibantu	semikonduktor elektronik

①Arah mlebu vakum		⑦ Inlet vakum	⑧Utas sambungan
TF	Vertikal	B5	A8
		B5	—
		B5 04 06	—
RF	Lateral	04 06	B5
RF	Lateral	04 06	A10

③ Tipe Pad ② Pad diameter (mm)		B06	B08	B10
③ Tipe Pad ② Pad diameter (mm)		ø6	ø8	ø10
MU	Tipe flat	—	●	●
MB	Bellows	●	●	—

④Material
N	NBR
S	Karet silikon
U	Karet urethane
F	FKM
GN	NBR konduktif
GS	Karet silikon konduktif

⑦ Inlet vakum
B5	M5x0.8 (Wanita)
04	ø4 pas siji-tutul
06	ø6 pas siji-tutul

⑧Utas sambungan
A8	M8x1 (lanang)
B5	M5x0.8 (Wanita)
A10	M10x1 (lanang)

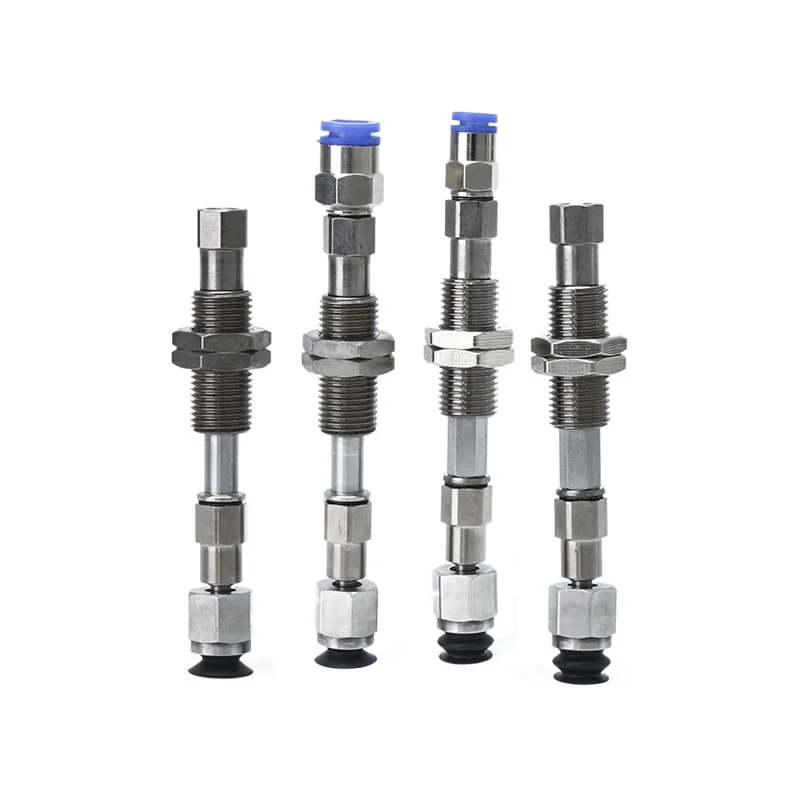

Ball Joint Vakum Nyedhot Cups ZP2-J

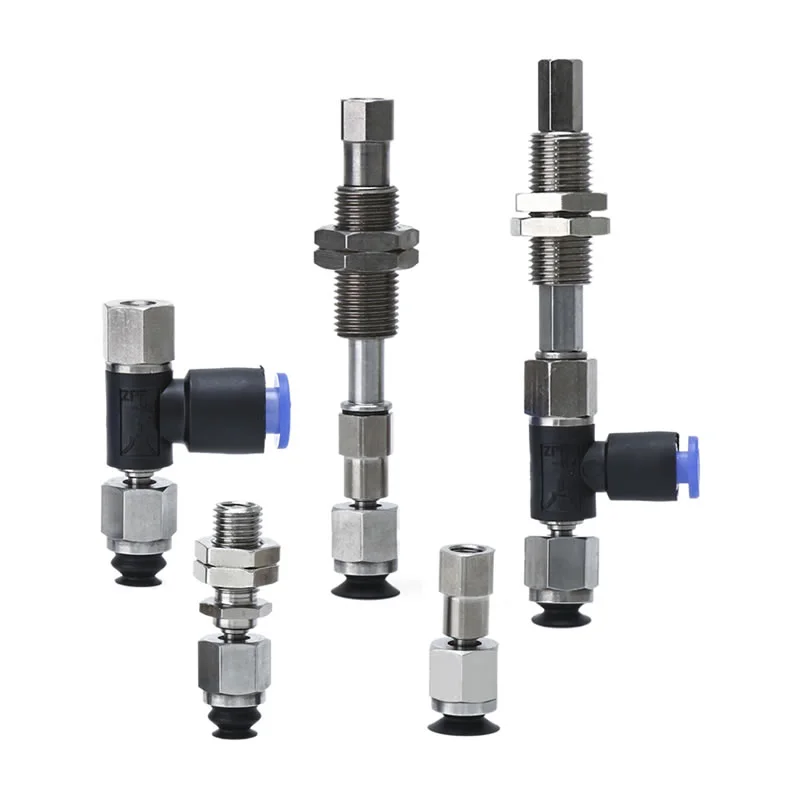

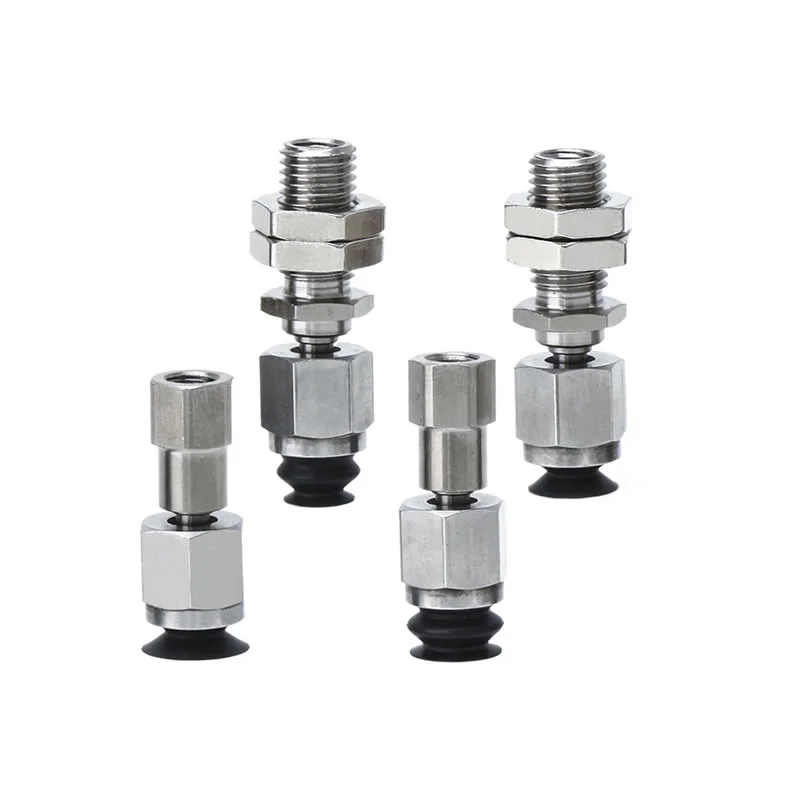

Ball Joint Vakum Nyedhot Cups ZP2-J

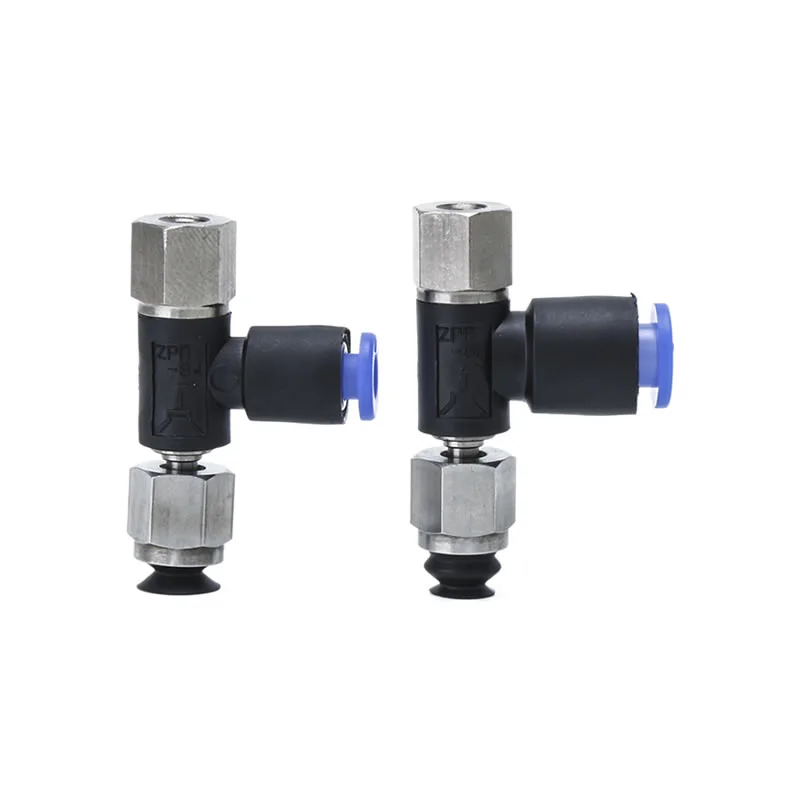

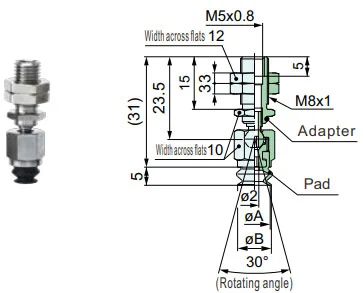

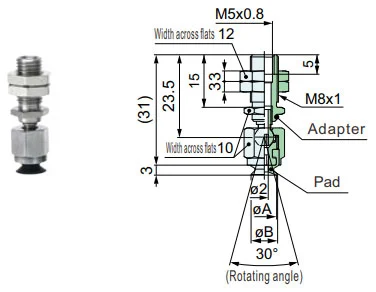

ZP2-TF Series Ball Joint Type Kanthi Adaptor Vacuum Pads

ZP2-TF Series Ball Joint Type Kanthi Pads Vakum Buffer

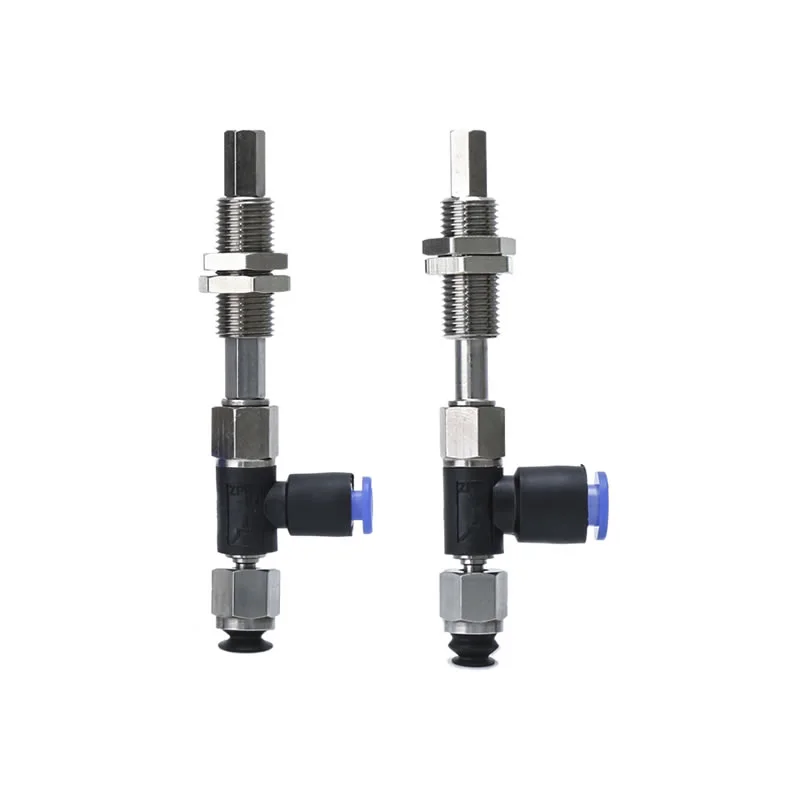

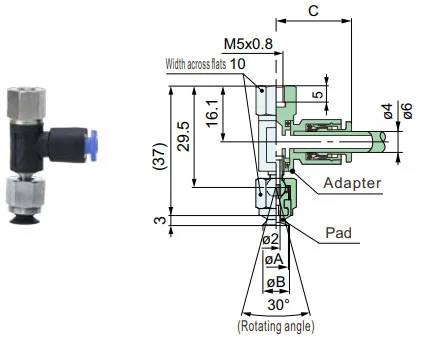

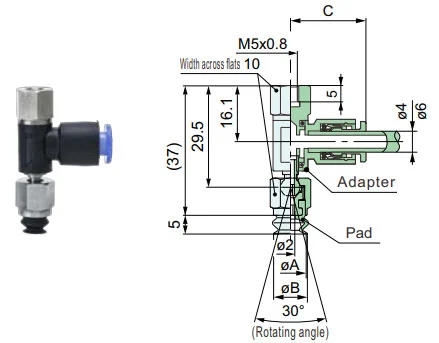

ZP2-RF Series Ball Joint Type Kanthi Adaptor Vacuum Pads

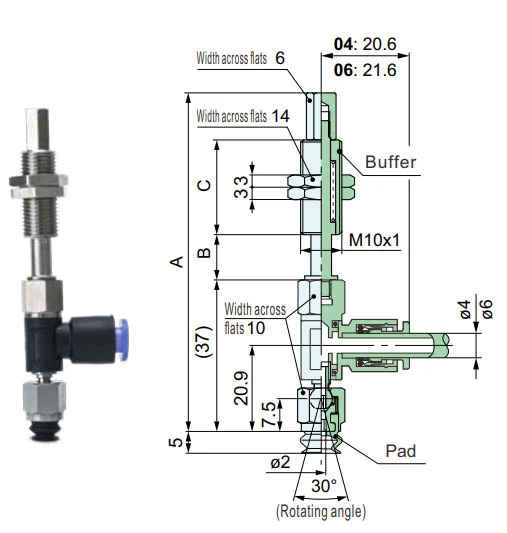

ZP2-RF Series Ball Joint Type Kanthi Pads Vakum Buffer

Kaluwihan inti

Biaya-Efektif & Pasokan Reliable

Fleksibel Ball Joint Desain

Stabilitas Ningkatake ing Kahanan Komplek

Struktur Buffer & Anti-Rotasi Opsional

Multiple Jinis & Ukuran Pad

Aplikasi Khas

Otomasi Industri

Penanganan Workpiece Komplek

Napa Pilih Ball Joint Vacuum Suction Cups ZP2-J?

Carane Order

B5

A8

B5

B5

04

06

04

06

B5

04

06

A10

Ukuran (mm)

Bahan lan Karakteristik Pad

Garis gedhe aplikasi komponen pneumatik (cangkir nyedhot vakum) ing macem-macem lapangan industri

⑤Spesifikasi buffer
J	Puteran
K	Non-rotating

⑥Buffer stroke
10	10 mm
20	20 mm
30	30 mm
40	40 mm
50	50 mm

Model							øA	øB	Adaptor

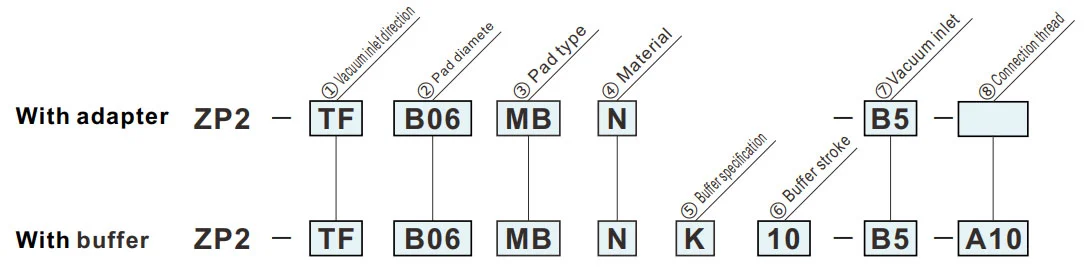

	① vakum mlebu arah	② Pad dia.	③ Pad jinis	④ Pad Bahan	⑦ vakum mlebu	⑧ Sambungan benang
ZP2	TF	B08	MU	N S U F GN GS	B5	A8	8	8.8	ZP2-TF1-B5-A8
		B10					10	10.6

Model									A	B	C	panyangga
	① vakum arah mlebu	② Pad dia.	③ Pad jinis	④ Pad Bahan	⑤ panyangga spek.	⑥ panyangga stroke	⑦ vakum mlebu	⑧ Sambungan benang					⑤ panyangga spek.	⑥ panyangga stroke	⑦ vakum mlebu	⑧ Sambungan benang

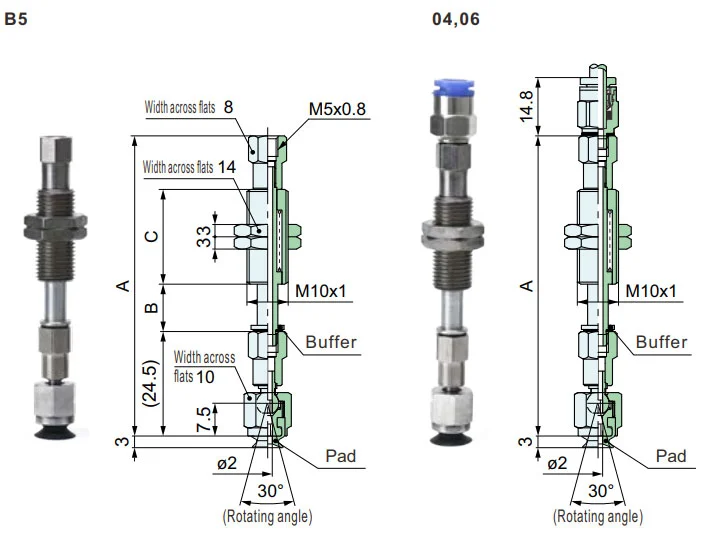

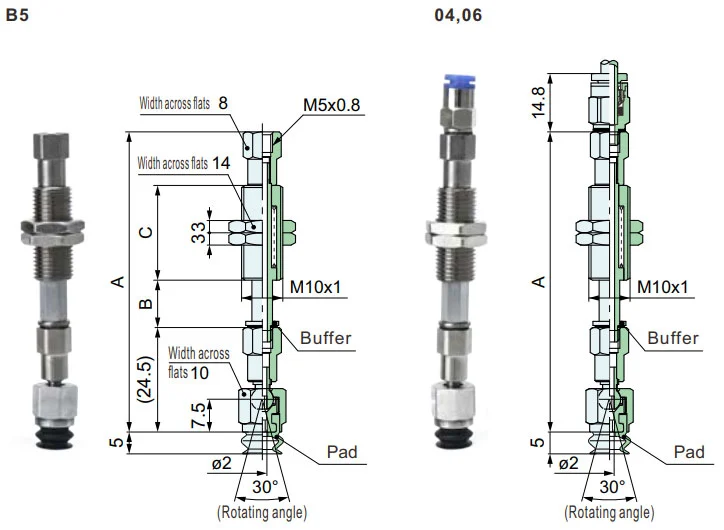

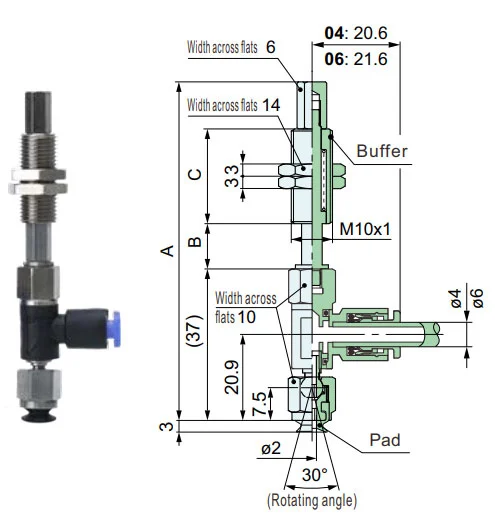

ZP2	TF	B08 B10	MU	N S U F GN GS	B5 04 06	J K	10	A10	72	11.5	23	ZP2-TF1	J K	10	B5 04 06	A10
							20		110	21.5	51			20
							30		120	31.5				30
							40		156	41.5	77			40
							50		166	51.5				50
